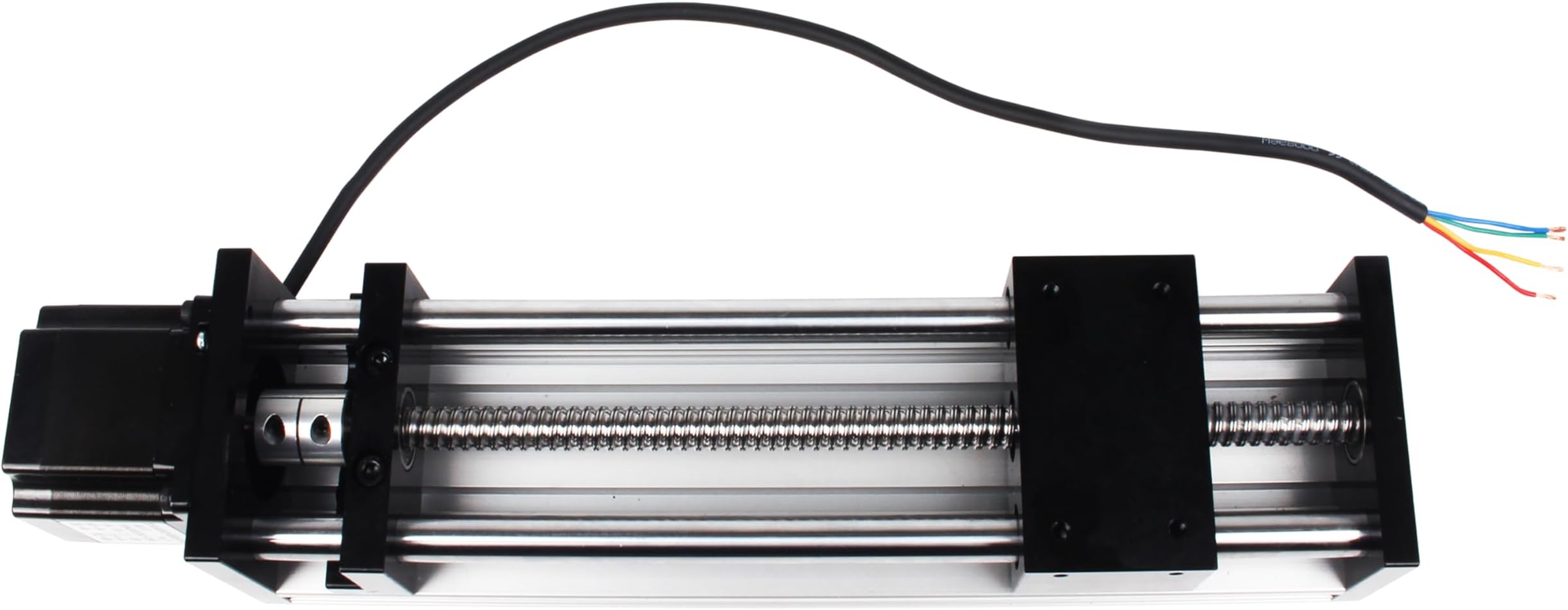

Name: XUNKUNER CNC Linear Motion Stage Actuator 400mm Effective Stroke, 1204 Ball Screw Linear Slide with NEMA23 Stepper Motor, Double Optical Axis Guide
Brand: Xunkuaner
SKU: 801968325
Price: 1635.94 RON
Availability: InStock

Fully operational. Shipping worldwide, on schedule.Customs & duties included in the price

Help Track order

Account Cart

Fully operational. Shipping worldwide, on schedule.Customs & duties included in the price

Help Track order

Account Cart

Buy anything from 5,000+ international stores. One checkout price. No surprise fees. Join 2M+ shoppers on Desertcart.

1635 Lei

Duties & taxes included

In stock

Sold byAmazon RomaniaDelivered byDesertcartCustomer service byDesertcartReturns14 days · 30 with PRO

Buyer Protection · Full refund if your order doesn't arrive as described.

Desertcart purchases this item on your behalf and handles shipping, customs, and support to Romania.

Secure transaction

Description

Specification: Screw: Ball screw drive 1204, diameter 12mm; Load capacity: Horizontal load capacity: 30kg, vertical load capacity: 15kg; Width: 80mm; Material: Aluminum alloy; Guide rail: 20mm square linear guide rail
1204 ball screw: made of bearing steel material, with low noise; Effective travel length: 400mm/15.76 inches. Screw accuracy grade: C7. Flange nut screw, accuracy up to 0.03mm/0.0012 '', lead: 4mm/0.013 '' (one turn of screw), diameter: 12mm/0.5 ''
Easy Installation ： 80mm aluminum profile base, M4 movable nut at the bottom, side mounting groove for easy fixation, M3 nut for limited installation, simple and convenient installation. Widely used: can be combined with multi axis, horizontal cross, gantry, three-axis, four axis, etc
Stepper motor: nema23 motor size: 57 * 57 * 56mm; torque: 1.26N. m; Current: 3A; Shaft: Single output shaft; Voltage: 12-36V (typical value 24V); Control mode: pulse control; Output speed: 1000 revolutions per minute (within 600 revolutions per minute). Wiring: Red (A+), Green (A -), Yellow (B+), Blue (B -)
Adopting dual axis guide rail: 12 chrome plated shaft, linear bearing, more stable and durable

Product description Specification Detail Display Slider and Rail Screw mounting holes and connecting pin holes are reserved 12 chrome plated optical axis, linear bearings, dual guide rails, more stable and efficient Nema23 Stepper Motor Size: 57mm*57mm*56mm Rated current: 3A Static torque: 1.26N.m Drive voltage: 12-36V (24V typical) Output speed: 1000rpm no load (within 600 load) Traveling Nut Bottom and side, both equipped with movable nuts for flexible installation All accessories undergo oxidation treatment and will not rust Linear Slide Rail Cross Sliding Table 1605 ball screw, slider and base, connect the stepper motor together, with mechanical jaws and air jaws for various movements Linear motion actuator can also be freely combined into a two-axis (XY table) or three-axis (XYZ table) system to achieve complex motion requirements Aliminum Alloy Materials Rigid coupling, ultra-low inertia, high sensitivity 1204 ball screw, high transmission efficiency and precision
